Project Information

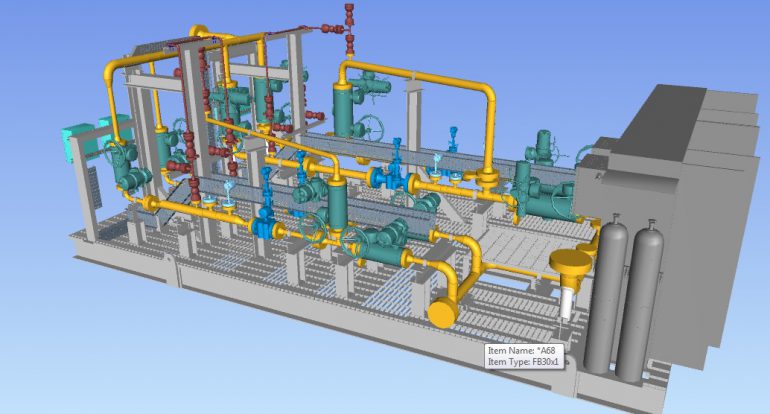

Detailed Engineering & 3D Modeling for Oil & Gas Metering Skid of of FPSO Catcher
Description
Client
A specialized engineering contractor in design, construction and commissioning of field-proven innovative solutions for Custody Transfer Flow Measurement in the Oil & Gas industry.
Engineering Requirement
Detail engineering for Oil & Gas Metering Skid of FPSO Catcher (Floating Production Storage & Offloading) including shop drawings for piping, structural steel, secondary steel platforms, ladders, cable tray supports with,
- 3D Model in CADWorx
- GA Drawings
- Pipe Stress Analysis Report
- Structural Steel Calculations including Anchor/Foundation Loads
- Piping Fabrications Drawings
- Structural Fabrications Drawings
- Lifting Lug Details
- Weld Preparation Details On Structure
- MTO for Structure (all structural steel elements including grating)
- MTO for Piping Materials (including bolts, nuts, gaskets)
- Weight and C.O.G. Calculations
- Lifting Calculations and Lifting Plan (drawing)
- Mono Rail Calculations
Delivered
- General Arrangement Drawings
- Final 3D Model
- Stress Report
- Isometric Drawings
- Pipe Support Details
- MTO for Piping & Structure
- Weight & C.O.G Calculations
- Fabrication Drawings
