Liquid Nitrogen Storage & Vaporization Package – 3D Modeling on SmartPlant 3D


Project Information

3D Modeling for Liquid Nitrogen Storage & Vaporization Packages of Cryogenic System using Intergraph SmartPlant 3D

Client

Cryogenic liquid storage & transport tanks designer & manufacturer

Team size

2 (including 1 Project Engineer/Coordinator)

Software

Intergraph SmartPlant 3D Version 2011 R1

Category

Oil & Gas

Project Duration

1 month

Location

India

Download Project Details

Description

Client

A global leader in providing solutions for Cryogenic Storage, Vaporization and Distribution Systems for EPC projects. The sectors covered by the client includes a vast pool encompassing LNG, Petrochemicals, Steel, Fertilizer, Oil & Gas industries.

Client Testimonial

“During the past three years our company has been working with Rishabh Engineering on numerous engineering projects. The company offers high quality services. We can say that we have always been immensely satisfied by their work.”

– Mechanical Specialist

Engineering Requirement

  • Detailed 3D modeling of two different stations for Liquid Nitrogen Storage & Vaporization Package. Which included equipment, piping, pipe supports, cable tray routing and mounted instrumentation.

Delivered

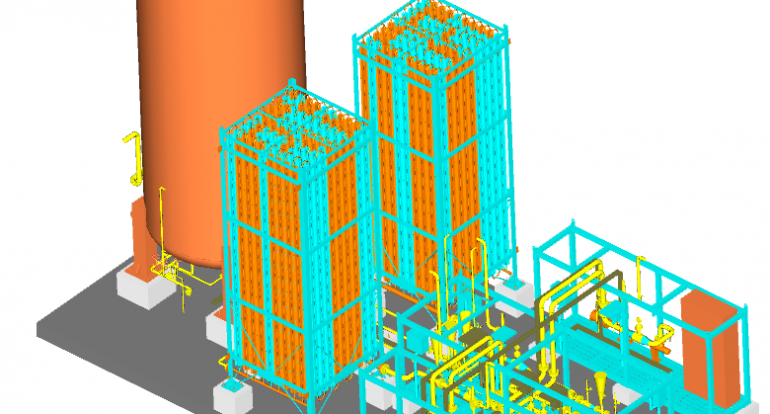

  • 3D model for two stations which includes components for Liquid Nitrogen Storage Tank, Vaporizers, Pressure Build Up unit, Heaters and Skids
  • SAT files generated for individual equipment to restrain the file size to below 5 MB
  • Extraction of (*.)SPR files for checking & reviewing the completed 3D Modeling task
